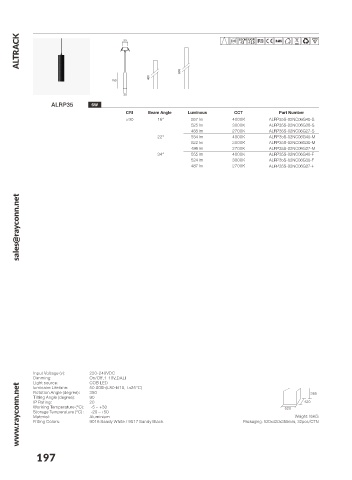

Page 210 - Rayconn Retail lighting Catalogue 2022

ALTRACK 55 IP20 84 IP20

800 600 www.rayconn.net
400 200 255
150

35
55
ALRP35 6W ALRP55 15W
CRI Beam Angle Luminous CCT Part Number CRI Beam Angle Luminous CCT Part Number
>90 16° 557 lm 4000K ALRP35S-02NC06G40-S >90 15° 1120 lm 4000K ALRP55S-02NC15G40-S
525 lm 3000K ALRP35S-02NC06G30-S 1057 lm 3000K ALRP55S-02NC15G30-S
488 lm 2700K ALRP35S-02NC06G27-S 983 lm 2700K ALRP55S-02NC15G27-S
22° 554 lm 4000K ALRP35S-02NC06G40-M 20° 1071 lm 4000K ALRP55S-02NC15G40-M
522 lm 3000K ALRP35S-02NC06G30-M 1010 lm 3000K ALRP55S-02NC15G30-M
486 lm 2700K ALRP35S-02NC06G27-M 940 lm 2700K ALRP55S-02NC15G27-M
34° 555 lm 4000K ALRP35S-02NC06G40-F 28° 1100 lm 4000K ALRP55S-02NC15G40-F
524 lm 3000K ALRP35S-02NC06G30-F 1038 lm 3000K ALRP55S-02NC15G30-F
487 lm 2700K ALRP35S-02NC06G27-F 965 lm 2700K ALRP55S-02NC15G27-F
50° 973 lm 4000K ALRP55S-02NC15G40-WF
918 lm 3000K ALRP55S-02NC15G30-WF
854 lm 2700K ALRP55S-02NC15G27-WF
sales@rayconn.net sales@rayconn.net

Input Voltage (v): 220-240VDC Input Voltage (v): 220-240VDC
Dimming: COB LED 365 Dimming: On/Off,1-10V,DALI 420 365
On/Off,1-10V,DALI
COB LED
Light source:
Light source:
www.rayconn.net Tilting Angle (degree): 90 Packaging: 520x420x365mm, 32pcs/CTN Tilting Angle (degree): N/A Packaging: 520x420x365mm, 32pcs/CTN ALTRACK
luminaire Lifetime:
luminaire Lifetime:
50.000h(L80-B10, Ta25°C)
50.000h(L80-B10, Ta25°C)
N/A
Rotation Angle (degree):
350
Rotation Angle (degree):
520
IP Rating:
IP Rating:
20
420
20
-5 ~ +30
-5 ~ +30
Working Temperature (°C):
Working Temperature (°C):
Weight:16KG
520
-20 ~+50
Storage Temperature (°C) :
-20 ~+50
Storage Temperature (°C) :
Weight:16KG
Material:
Aluminium
Material:
Aluminium
9016 Sandy White / 9017 Sandy Black
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
Fitting Colors:
197 198
