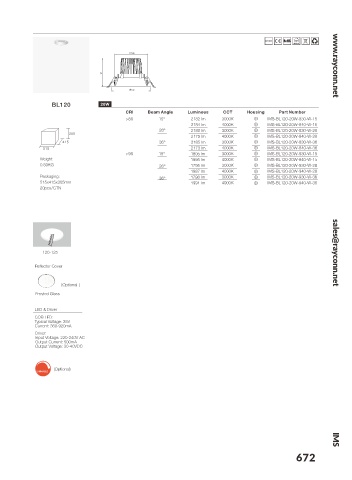

Page 683 - Rayconn Retail lighting Catalogue 2022

IMS IP20 INDOOR USE IP20 INDOOR USE www.rayconn.net

BL100 20W BL120 20W
CRI Beam Angle Luminous CCT Housing Part Number CRI Beam Angle Luminous CCT Housing Part Number
>80 15° 2182 lm 3000K IMS-BL100-20W-830-W-15 >80 15° 2182 lm 3000K IMS-BL120-20W-830-W-15
-
-
2184 lm 4000K IMS-BL100 20W-840-W-15 2184 lm 4000K IMS-BL120 20W-840-W-15
-
28° 2180 lm 3000K IMS-BL100 20W-830-W-28 28° 2180 lm 3000K IMS-BL120 20W-830-W-28
-
305 305
2175 lm 4000K IMS-BL100 20W-840-W-28 2175 lm 4000K IMS-BL120 20W-840-W-28
-
-
-
415 36° 2185 lm 3000K IMS-BL100 20W-830-W-36 415 36° 2185 lm 3000K IMS-BL120 20W-830-W-36
-
-
-
515 2173 lm 4000K IMS-BL100 20W-840-W-36 515 2173 lm 4000K IMS-BL120 20W-840-W-36
-
>90 15° 1805 lm 3000K IMS-BL100 20W-930-W-15 >90 15° 1805 lm 3000K IMS-BL120 20W-930-W-15
-
Weight: 1995 lm 4000K IMS-BL100 20W-940-W-15 Weight: 1995 lm 4000K IMS-BL120 20W-940-W-15
-
-
0.83KG 28° 1795 lm 3000K IMS-BL100 20W-930-W-28 0.83KG 28° 1795 lm 3000K IMS-BL120 20W-930-W-28
-
-
-
1987 lm 4000K IMS-BL100 20W-940-W-28 1987 lm 4000K IMS-BL120 20W-940-W-28
-
Packaging: 36° 1798 lm 3000K IMS-BL100 20W-930-W-36 Packaging: 36° 1798 lm 3000K IMS-BL120 20W-930-W-36
-
-
515x415x305mm 1991 lm 4000K IMS-BL100 20W-940-W-36 515x415x305mm 1991 lm 4000K IMS-BL120 20W-940-W-36
-
-
20pcs/CTN 20pcs/CTN
sales@rayconn.net
120-125
100-105
Reflector Cover Reflector Cover sales@rayconn.net
(Optional )
(Optional )
Frosted Glass
Frosted Glass
LED & Driver
LED & Driver
COB LED: COB LED:
Typical Voltage: 35V Typical Voltage: 35V
Current: 360-920mA Current: 360-920mA
Driver: Driver:
Input Voltage: 220-240V AC Input Voltage: 220-240V AC
Output Current: 500mA Output Current: 500mA
Output Voltage: 30-40VDC Output Voltage: 30-40VDC
(Optional) (Optional)
(Optional)
(Optional)
DIMMABLE DIMMABLE
DIMMABLE
DIMMABLE
www.rayconn.net

671 672 IMS
