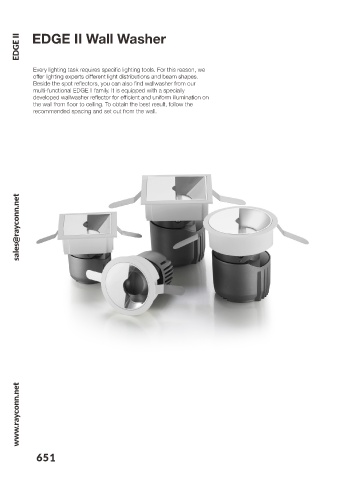

EDGE II EDGE II Wall Washer
Every lighting task requires specific lighting tools. For this reason, we www.rayconn.net
offer lighting experts different light distributions and beam shapes.
Beside the spot reflectors, you can also find wallwasher from our
multi-functional EDGE II family. It is equipped with a specially
developed wallwasher reflector for efficient and uniform illumination on
the wall from floor to ceiling. To obtain the best result, follow the
recommended spacing and set out from the wall.
sales@rayconn.net Installation Instruction sales@rayconn.net
The distance from the fixture to the wall(a) is generally 1/3 of the height of the wall(h)and the
distance between the fixtures(d) is 0.8 meters,achieving a very uniform wall washing effect.
www.rayconn.net a:h=1:3 a=d EDGE II
