Page 649 - Rayconn Retail lighting Catalogue 2022

EDGE II Fixed & Round IP20 Fixed & Squar e IP20

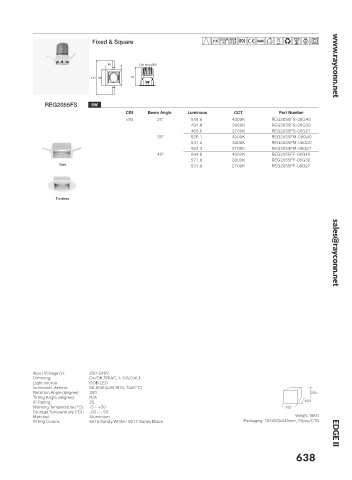

Fixed & Square

Cut hole Ø55 66 Cut hole Ø55 www.rayconn.net
140
75 75
141 66
Ø65
Ø65
REG2055FR 8W REG2055FS 8W
CRI Beam Angle Luminous CCT Part Number CRI Beam Angle Luminous CCT Part Number
>90 20° 558.8 4000K REG2055FS-08G40 >90 20° 558.8 4000K REG2055FS-08G40
494.6 3000K REG2055FS-08G30 494.6 3000K REG2055FS-08G30
460.0 2700K REG2055FS-08G27 460.0 2700K REG2055FS-08G27
30° 626.1 4000K REG2055FM-08G40 30° 626.1 4000K REG2055FM-08G40
541.2 3000K REG2055FM-08G30 541.2 3000K REG2055FM-08G30
503.3 2700K REG2055FM-08G27 503.3 2700K REG2055FM-08G27
40° 644.6 4000K REG2055FF-08G40 40° 644.6 4000K REG2055FF-08G40
571.8 3000K REG2055FF-08G30 571.8 3000K REG2055FF-08G30
Trim 531.8 2700K REG2055FF-08G27 Trim 531.8 2700K REG2055FF-08G27

sales@rayconn.net Trimless Trimless sales@rayconn.net

Input Voltage (v): 220-240V Input Voltage (v): 220-240V
Dimming: On/Off,TRIAC,1-10V,DALI 245 Dimming: On/Off,TRIAC,1-10V,DALI 245
COB LED
Light source:
Light source:
COB LED
www.rayconn.net Tilting Angle (degree): N/A Packaging: 787x623x245mm, 72pcs/CTN Tilting Angle (degree): N/A Packaging: 787x623x245mm, 72pcs/CTN EDGE II
luminaire Lifetime:
50.000h(L80-B10, Ta25°C)
50.000h(L80-B10, Ta25°C)
luminaire Lifetime:
350
Rotation Angle (degree):
350
Rotation Angle (degree):
623
623
IP Rating:
20
20
IP Rating:
-5 ~ +30
Working Temperature (°C):
Working Temperature (°C):
-5 ~ +30
787
787
-20 ~ +50
Storage Temperature (°C) :
Storage Temperature (°C) :
-20 ~ +50
Weight:18KG
Weight:18KG
Aluminium
Material:
Aluminium
Material:
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
637 638
