Page 558 - Rayconn Retail lighting Catalogue 2022

TRACK.DC 48V 184 330° 90° IP20 48V 184 330° 90° IP20 www.rayconn.net

105
95
40 112 123 46
95 112

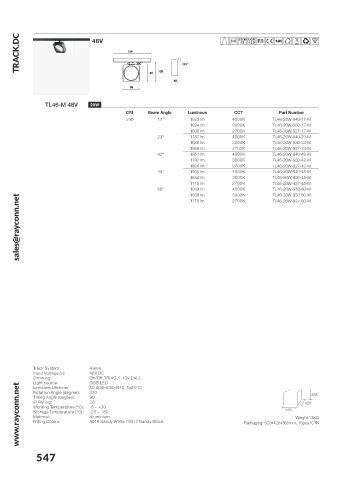

TL46-M 48V 20W TL46-L 48V 28W
CRI Beam Angle Luminous CCT Part Number CRI Beam Angle Luminous CCT Part Number
>90 17° 1933 lm 4000K TL46-20W-940-17-M >90 15° 2644 lm 4000K TL46-28W-940-15-L
1824 lm 3000K TL46-20W-930-17-M 2164 lm 3000K TL46-28W-930-15-L
1696 lm 2700K TL46-20W-927-17-M 2013 lm 2700K TL46-28W-927-15-L
23° 1787 lm 4000K TL46-20W-940-23-M 24° 2644 lm 4000K TL46-28W-940-24-L
1686 lm 3000K TL46-20W-930-23-M 2158 lm 3000K TL46-28W-930-24-L
1568 lm 2700K TL46-20W-927-23-M 2007 lm 2700K TL46-28W-927-24-L
42° 1851 lm 4000K TL46-20W-940-42-M 36° 2714 lm 4000K TL46-28W-940-36-L
1747 lm 3000K TL46-20W-930-42-M 2216 lm 3000K TL46-28W-930-36-L
1624 lm 2700K TL46-20W-927-42-M 2061 lm 2700K TL46-28W-927-36-L
45° 1955 lm 4000K TL46-20W-940-45-M
1844 lm 3000K TL46-20W-930-45-M
1715 lm 2700K TL46-20W-927-45-M
60° 1949 lm 4000K TL46-20W-940-60-M
1839 lm
sales@rayconn.net sales@rayconn.net
3000K
TL46-20W-930-60-M
TL46-20W-927-60-M
1710 lm
2700K

Track System: 4 wire Track System: 4 wire
Input Voltage (v): 48V DC Input Voltage (v): 48V DC
On/Off,TRIAC,1-10V,DALI
Dimming: COB LED 365 Dimming: On/Off,TRIAC,1-10V,DALI 365
Light source:
COB LED
Light source:
www.rayconn.net Tilting Angle (degree): 90 Packaging: 520x420x365mm, 16pcs/CTN Tilting Angle (degree): 90 Packaging: 520x420x365mm, 16pcs/CTN TRACK.DC
50.000h(L80-B10, Ta25°C)
50.000h(L80-B10, Ta25°C)
luminaire Lifetime:
luminaire Lifetime:
Rotation Angle (degree):
330
Rotation Angle (degree):
330
IP Rating:
20
20
IP Rating:
420
420
-5 ~ +30
Working Temperature (°C):
-5 ~ +30
Working Temperature (°C):
520
520
Storage Temperature (°C) : -20 ~ +50
-20 ~ +50
Storage Temperature (°C) :
Aluminium
Material:
Aluminium
Material:
Weight:13KG
Weight:15KG
9016 Sandy White / 9017 Sandy Black
9016 Sandy White / 9017 Sandy Black
Fitting Colors:
Fitting Colors:
547 548
