Page 543 - Rayconn Retail lighting Catalogue 2022

TRACK.DC 48V 170 330° 90° IP20 48V 170 330° 90° IP20 www.rayconn.net

100
33 113 38
86.5 100

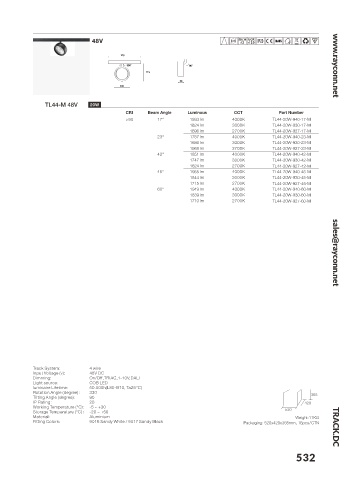

TL44-S 48V 15W TL44-M 48V 20W
CRI Beam Angle Luminous CCT Part Number CRI Beam Angle Luminous CCT Part Number
>90 10° 1311 lm 4000K TL44-15W-940-10-S >90 17° 1933 lm 4000K TL44-20W-940-17-M
1222 lm 3000K TL44-15W-930-10-S 1824 lm 3000K TL44-20W-930-17-M
1105 lm 2700K TL44-15W-927-10-S 1696 lm 2700K TL44-20W-927-17-M
20° 1316 lm 4000K TL44-15W-940-20-S 23° 1787 lm 4000K TL44-20W-940-23-M
1242 lm 3000K TL44-15W-930-20-S 1686 lm 3000K TL44-20W-930-23-M
1120 lm 2700K TL44-15W-927-20-S 1568 lm 2700K TL44-20W-927-23-M
36° 1368 lm 4000K TL44-15W-940-36-S 42° 1851 lm 4000K TL44-20W-940-42-M
1289 lm 3000K TL44-15W-930-36-S 1747 lm 3000K TL44-20W-930-42-M
1166 lm 2700K TL44-15W-927-36-S 1624 lm 2700K TL44-20W-927-42-M
60° 1345 lm 4000K TL44-15W-940-60-S 45° 1955 lm 4000K TL44-20W-940-45-M
1253 lm 3000K TL44-15W-930-60-S 1844 lm 3000K TL44-20W-930-45-M
1135 lm 2700K TL44-15W-927-60-S 1715 lm 2700K TL44-20W-927-45-M
60° 1949 lm 4000K TL44-20W-940-60-M
3000K
1839 lm
TL44-20W-930-60-M
sales@rayconn.net sales@rayconn.net
TL44-20W-927-60-M
2700K
1710 lm

Track System: 4 wire Track System: 4 wire
Input Voltage (v): 48V DC Input Voltage (v): 48V DC
Dimming: On/Off,TRIAC,1-10V,DALI 350 Dimming: On/Off,TRIAC,1-10V,DALI 365
COB LED
Light source:
Light source:
COB LED
www.rayconn.net Tilting Angle (degree): 90 Packaging: 520x350x350mm, 20pcs/CTN Tilting Angle (degree): 90 Packaging: 520x420x365mm, 16pcs/CTN TRACK.DC
luminaire Lifetime:
50.000h(L80-B10, Ta25°C)
luminaire Lifetime:
50.000h(L80-B10, Ta25°C)
330
330
Rotation Angle (degree):
Rotation Angle (degree):
IP Rating:
20
20
IP Rating:
350
420
Working Temperature (°C):
-5 ~ +30
Working Temperature (°C):
-5 ~ +30
520
520
Storage Temperature (°C) : -20 ~ +50
Storage Temperature (°C) : -20 ~ +50
Aluminium
Material:
Material:
Aluminium
Weight:10KG
Weight:11KG
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
531 532
