Page 251 - Rayconn Retail lighting Catalogue 2022

FLOW.IT 220V 189 IP20 220V 189 IP20

330°
128 90° 330° 128 90° www.rayconn.net
95 112
40 46
95 112

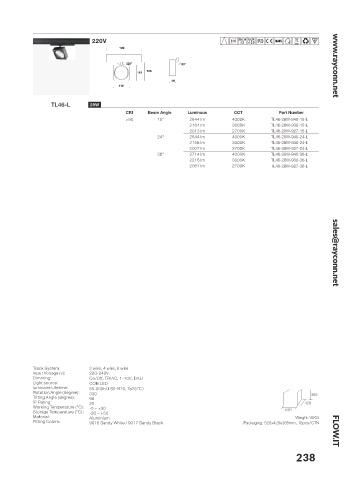

TL46-M 20W TL46-L 28W
CRI Beam Angle Luminous CCT Part Number CRI Beam Angle Luminous CCT Part Number
>90 17° 1933 lm 4000K TL46-20W-940-17-M >90 15° 2644 lm 4000K TL46-28W-940-15-L
1824 lm 3000K TL46-20W-930-17-M 2164 lm 3000K TL46-28W-930-15-L
1696 lm 2700K TL46-20W-927-17-M 2013 lm 2700K TL46-28W-927-15-L
23° 1787 lm 4000K TL46-20W-940-23-M 24° 2644 lm 4000K TL46-28W-940-24-L
1686 lm 3000K TL46-20W-930-23-M 2158 lm 3000K TL46-28W-930-24-L
1568 lm 2700K TL46-20W-927-23-M 2007 lm 2700K TL46-28W-927-24-L
42° 1851 lm 4000K TL46-20W-940-42-M 36° 2714 lm 4000K TL46-28W-940-36-L
1747 lm 3000K TL46-20W-930-42-M 2216 lm 3000K TL46-28W-930-36-L
1624 lm 2700K TL46-20W-927-42-M 2061 lm 2700K TL46-28W-927-36-L
45° 1955 lm 4000K TL46-20W-940-45-M
1844 lm 3000K TL46-20W-930-45-M
1715 lm 2700K TL46-20W-927-45-M
60° 1949 lm 4000K TL46-20W-940-60-M
TL46-20W-930-60-M
sales@rayconn.net sales@rayconn.net
1839 lm
3000K
2700K
TL46-20W-927-60-M
1710 lm

Track System: 3 wire, 4 wire, 6 wire Track System: 3 wire, 4 wire, 6 wire
Input Voltage (v): 220-240V Input Voltage (v): 220-240V
Dimming: On/Off，TRIAC，1-10V，DALI 365 Dimming: On/Off，TRIAC，1-10V，DALI 365
Light source:
Light source:
COB LED
COB LED
www.rayconn.net Tilting Angle (degree): 90 Packaging: 520x420x365mm, 16pcs/CTN Tilting Angle (degree): 90 Packaging: 520x420x365mm, 16pcs/CTN FLOW.IT
luminaire Lifetime:
luminaire Lifetime:
50.000h（L80-B10, Ta25°C）
50.000h（L80-B10, Ta25°C）
Rotation Angle (degree):
Rotation Angle (degree):
330
330
IP Rating:
IP Rating:
420
20
20
420
Working Temperature (°C):
Working Temperature (°C):
-5 ~ +30
-5 ~ +30
520
520
Storage Temperature (°C) :
Storage Temperature (°C) :
-20 ~ +50
-20 ~ +50
Material:
Material:
Weight:13KG
Weight:15KG
Aluminium
Aluminium
Fitting Colors:
Fitting Colors:
9016 Sandy White / 9017 Sandy Black
9016 Sandy White / 9017 Sandy Black
237 238
